Elisa

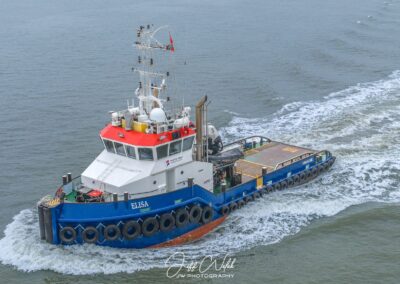

The “ELISA”, built in 2017, is a shallow draft anchor handling tug of 32,27 by 9,10 meters.
The twin Caterpillar engines delivering 3.500 BHP which results in 51,6 tons bollard pull. In combination with minimal draft, the 350 BHP bow thruster and twin fixed propellers in nozzles, gives the vessel maximum maneuverability.
The strong HS Marine deck crane with a maximum lift capacity of 8,0 tons(m) at 16,0 meters, the double drum waterfall winch of 100 tons (pull), a 12 tons tugger winch and a maximum clear deck area, makes the vessel more than multifunctional.
Type | Shallow draft |
Flag | Dutch |
Length x width | 32,27 x 9,10 meters |
Draft (min. – max.) | 2,80 – 3,30 meters |
Gross Tonnage | 327 GT |
Bollard pull | 51,6 ton |
Propulsion | 2x Caterpillar 3512C TA/HD |
Towing winch | Double drum 50/100 tons pull |
Fuel capacity | 220.000 liters |
